Analyzing Dynamic Tags with SQL

1
-- Step 1: Rank dynamic tags for each image based on their scores
2
WITH ranked AS (
3
    SELECT
4
        coactive_image_id,        -- The unique ID for each image
5
        tag_name,                 -- The tag assigned to the image
6
        score,                    -- The confidence score for the tag
7
        ROW_NUMBER() OVER (
8
            PARTITION BY coactive_image_id  -- Separate ranking for each image
9
            ORDER BY score DESC             -- Rank tags by confidence score in descending order
10
        ) AS rn                   -- Assign a rank to each tag per image
11
    FROM
12
        dt_sports_visual          -- V3 Dynamic Tags visual table
13
),
14
15
-- Step 2: Filter to keep the most relevant tags for each image
16
image_tag_table AS (
17
    SELECT
18
        coactive_image_id,        -- Image ID
19
        tag_name,                 -- Tag name
20
        score                     -- Confidence score for the tag
21
    FROM
22
        ranked
23
    WHERE
24
        rn <= 3                   -- Keep only the top 3 tags per image
25
        AND score > 0.01          -- Exclude low-confidence tags (score <= 0.01)
26
)
27
28

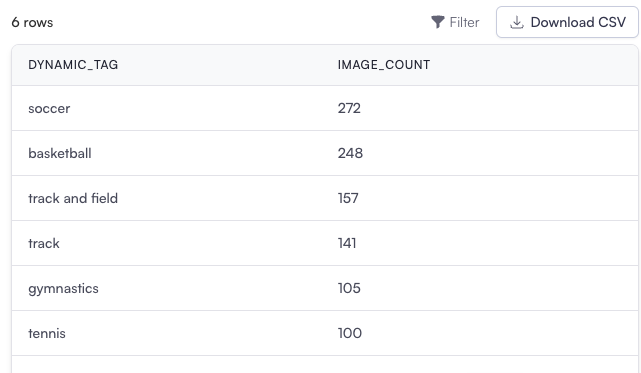

-- Step 3: Aggregate tag distribution across the dataset
29
SELECT
30
    tag_name,                     -- Tag name
31
    COUNT(DISTINCT coactive_image_id) AS image_count  -- Count the number of unique images with this tag
32
FROM
33
    image_tag_table
34
GROUP BY
35
    tag_name                      -- Group results by tag name
36
ORDER BY
37
    image_count DESC;            -- Order by the frequency of each tag in descending order

1
-- Step 1: Join with core table to get video association information
2
WITH video_info AS (
3
    SELECT DISTINCT
4
        dt.coactive_image_id,
5
        t.coactive_video_id
6
    FROM dt_sports_visual dt
7
    JOIN coactive_table t ON dt.coactive_image_id = t.coactive_image_id
8
    WHERE t.coactive_video_id IS NOT NULL -- Filter for video keyframes
9
),
10
11
-- Step 2: Rank tags for each image, excluding video keyframes for standalone image analysis
12
ranked AS (
13
    SELECT
14
        dt.coactive_image_id,
15
        dt.tag_name,
16
        dt.score,
17
        ROW_NUMBER() OVER (
18
            PARTITION BY dt.coactive_image_id -- Rank tags for each image
19
            ORDER BY dt.score DESC -- Highest scoring tags first
20
        ) AS rn
21
    FROM dt_sports_visual dt
22
    WHERE dt.coactive_image_id NOT IN (SELECT coactive_image_id FROM video_info) -- Exclude video keyframes
23
),
24
25
-- Step 3: Filter to retain the top 5 tags per image
26
image_tag_table AS (
27
    SELECT
28
        coactive_image_id,
29
        tag_name,
30
        score
31
    FROM ranked
32
    WHERE rn <= 5 -- Keep only the top 5 tags per image
33
          AND score > 0.001 -- Exclude low-confidence tags
34
)
35
36

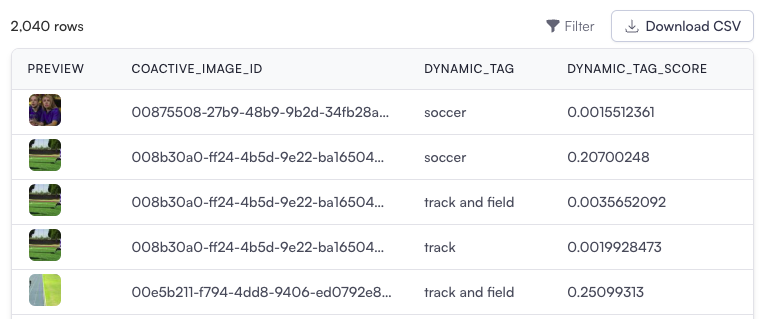

-- Final Output: Retrieve the most significant tags for each image
37
SELECT
38
    coactive_image_id,
39
    tag_name,
40
    score
41
FROM image_tag_table;

1
-- Step 1: Get video associations from keyframe data
2
WITH video_keyframes AS (
3
    SELECT *
4
        dt.coactive_image_id,
5
        dt.tag_name,
6
        dt.score,
7
        t.coactive_video_id
8
    FROM dt_sports_visual dt
9
    JOIN coactive_table t ON dt.coactive_image_id = t.coactive_image_id
10
    WHERE t.coactive_video_id IS NOT NULL -- Ensure valid video data
11
),
12
13
-- Step 2: Rank tags for each keyframe within each video
14
ranked AS (
15
    SELECT
16
        coactive_video_id,
17
        coactive_image_id,
18
        tag_name,
19
        score,
20
        ROW_NUMBER() OVER (
21
            PARTITION BY coactive_video_id, coactive_image_id -- Rank tags separately for each keyframe within a video
22
            ORDER BY score DESC -- Highest scoring tags first
23
        ) AS rn
24
    FROM video_keyframes
25
),
26
27
-- Step 3: Remove duplicates for tags within each video
28
distinct_tags AS (
29
    SELECT
30
        coactive_video_id,
31
        coactive_image_id,
32
        tag_name,
33
        score,
34
        ROW_NUMBER() OVER (
35
            PARTITION BY coactive_video_id, tag_name -- Rank each tag within the same video
36
            ORDER BY score DESC -- Keep the highest score for each tag
37
        ) AS tag_rank
38
    FROM ranked
39
    WHERE rn <= 5 -- Keep only the top 5 tags per keyframe
40
          AND score > 0.001 -- Exclude low-confidence tags
41
),
42
43
-- Step 4: Rank tags across the video to find the most significant ones
44
video_tag_table AS (
45
    SELECT
46
        coactive_video_id,
47
        coactive_image_id,
48
        tag_name,
49
        score,
50
        DENSE_RANK() OVER (
51
            PARTITION BY coactive_video_id -- Rank tags globally for the video
52
            ORDER BY score DESC
53
        ) AS rn_video
54
    FROM distinct_tags
55
    WHERE tag_rank = 1 -- Include only the best instance of each tag
56
),
57
58
-- Step 5: Select the top 5 tags for each video
59
video_top_tag_table AS (
60
    SELECT *
61
    FROM video_tag_table
62
    WHERE rn_video <= 5 -- Limit to the top 5 tags per video
63
    ORDER BY coactive_video_id, score DESC
64
)
65
66

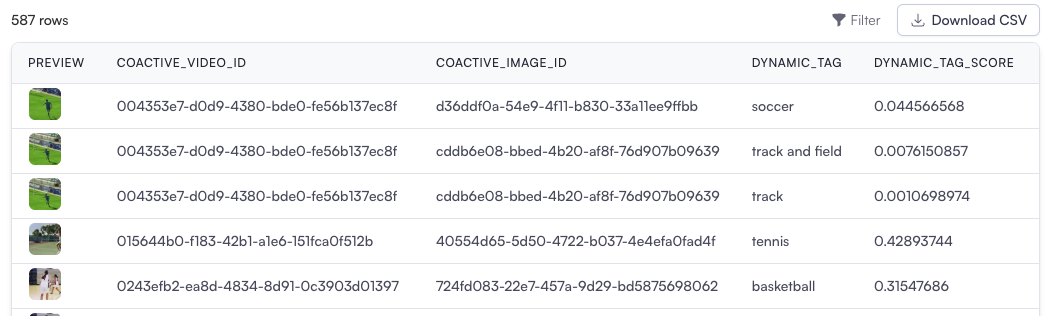

-- Final Output: Retrieve the most significant tags for each video
67
SELECT *
68
FROM video_top_tag_table;
